1Inch Disk Filter

1Inc Y-Type Disk Filter

In-Line Prefiltration

Maximum Flow Rate: 6000 Liters Per Hour.

Maximum Operating Pressure: 8 Bar.

Filter Surface Area: 180cm².

Filter Rating: 120 Mesh / 130 Microns.

Basic Features Included:

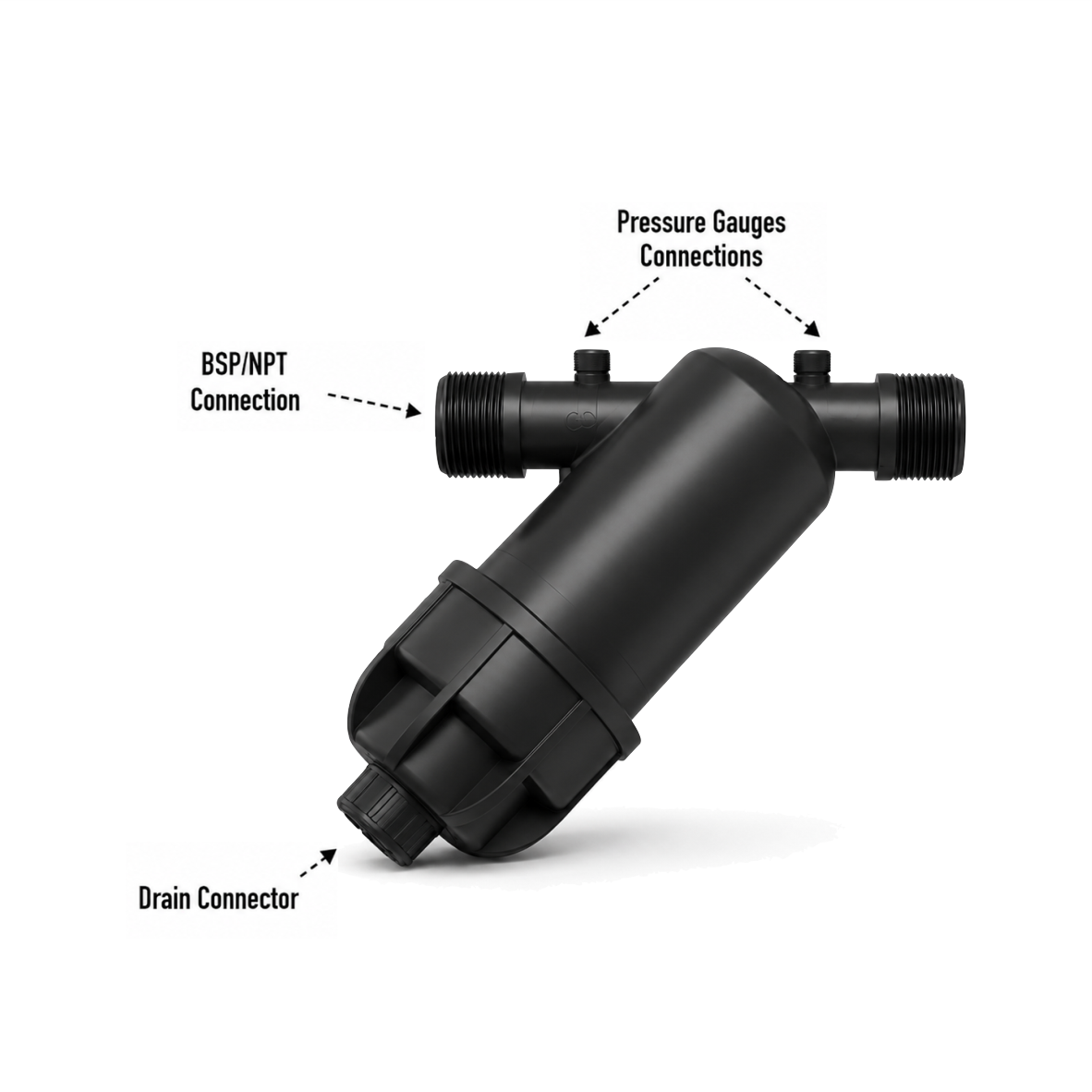

• Engineered Polypropylene Filter Housing
  • 1Inch BSP Male Connection Ports.
  • 1/4Inch BSP Male Pressure Gauge Connections (Excluding Pressure Gauges)
  • 3/4Inch BSP Drain Valve Connection (Excluding Drain Valve)
  • Modular 130 Microns Disk Filter with 180cm² Filter Surface Area.
